Blackheath and Mt Victoria Transmission Tower Upgrade

Project Details

Client : Endeavour Energy
Type : Transmission Tower Upgrades
Date : 2015
Scope of project:

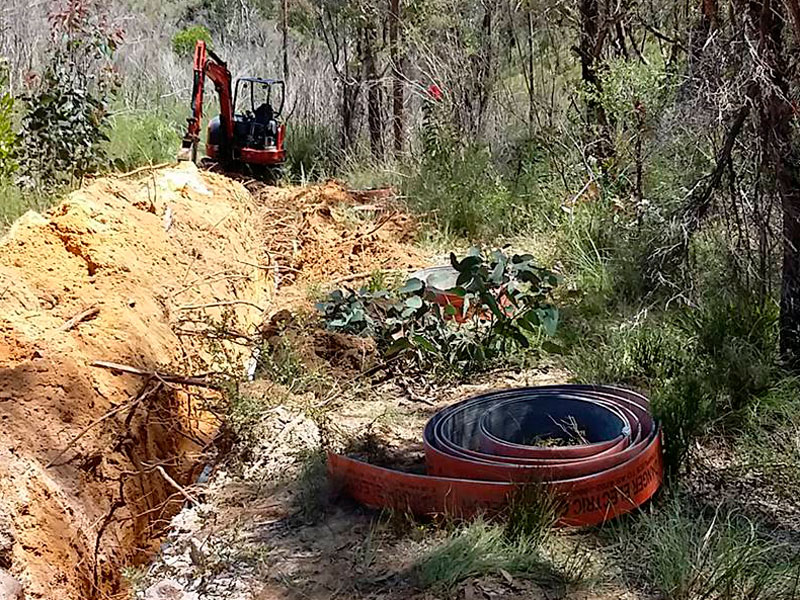

Supply and installation of complete earth grid installations for four transmission towers including:

  • 8 x 30m-deep earth electrodes per tower
  • Buried earth grids
  • Bolted connections
  • Connections to 4 x tower legs

Endeavour Energy managed compliance with standards, and the project required careful coordination between the Earthing Solutions and Endeavour Energy management teams.

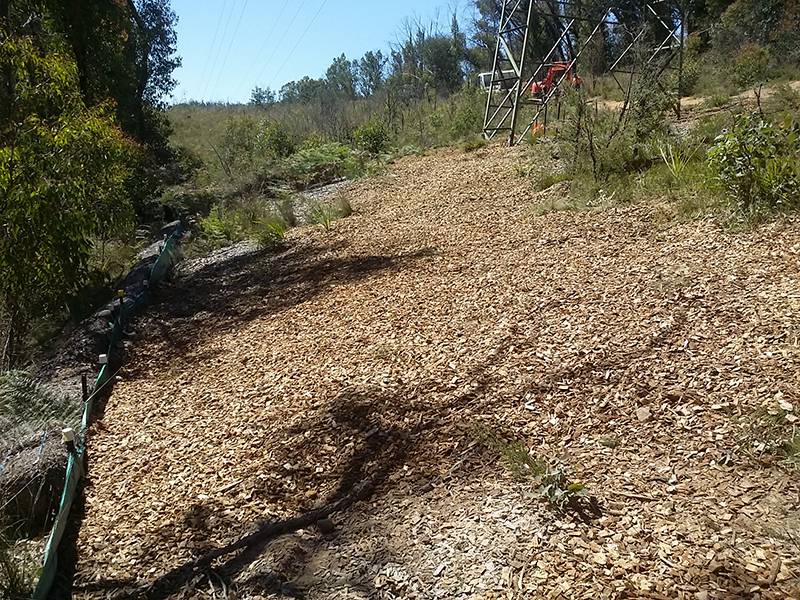

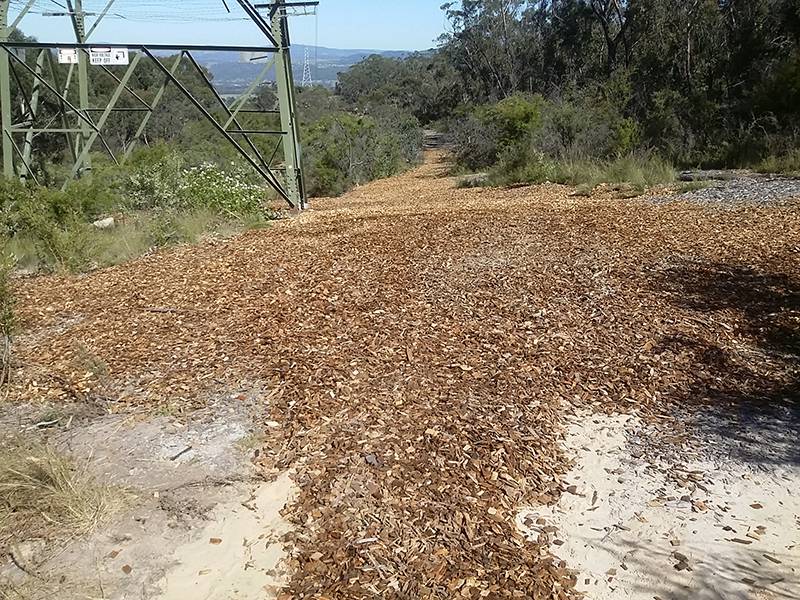

Challenge: The transmission towers are located in sensitive areas for flora and fauna and the project required strict environmental management with erosion control and remediation being high priorities.

Result: The project was completed on time and on budget.
